LT40

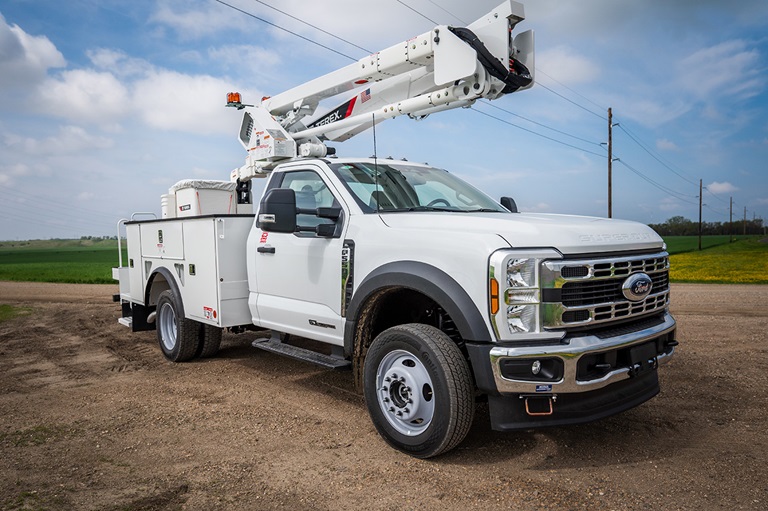

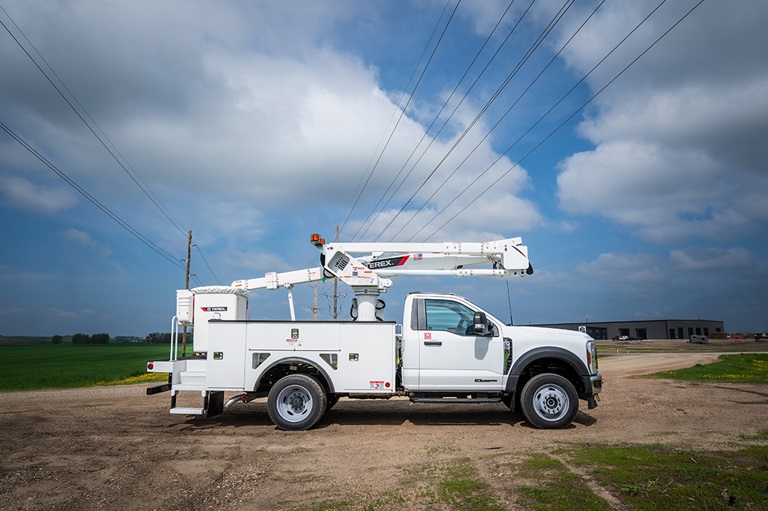

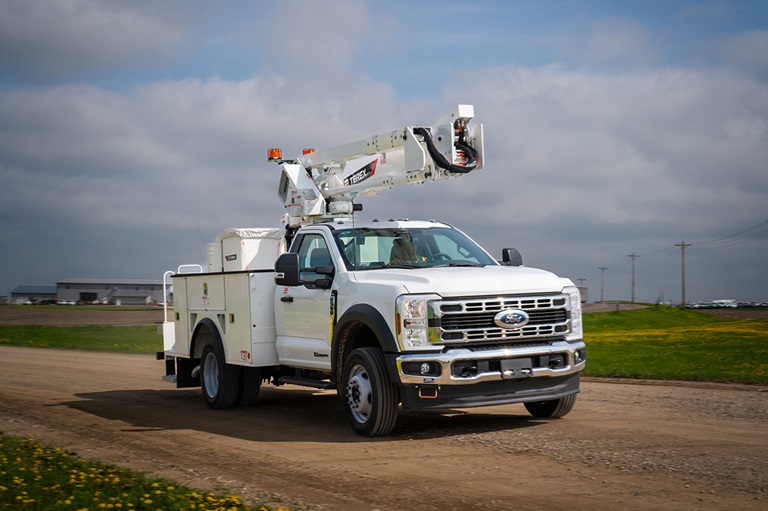

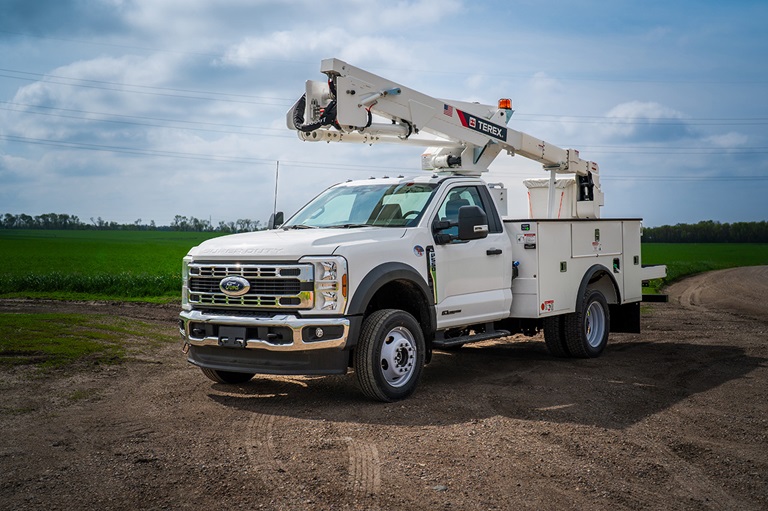

The Terex Hi-Ranger LT40 trouble truck features a simple compact design for easy maneuverability. The LT40 is typically mounted on a Class 5 truck chassis offering a working height of more than 45 feet, more than 25 feet of side reach, and a maximum platform capacity of 400 pounds. The LT40 is available with an end-mount boom tip configuration and Category 'C' rating per ANSI A92.2.
- Working height of 45.6 feet (13.8 meters)
- Horizontal side reach of 26 feet (8 meters) without outriggers - 29 feet (9 meters) with outriggers
- Maximum platform capacity of 400 pounds (181 kg)
- Category 'C' Rating Per ANSI A92.2
- Rectangular, Bi-Axial Epoxy Resin, Filament Wound Fiberglass Boom
- Full Pressure Controls on Side of Platform
- Platform Tilt Control at Upper and Lower Controls
- Hydraulic Platform Leveling
- Outriggers not required
- CDL not required
*Pictures are representative and may not be identical to stock and ready-built products.
.png?sfvrsn=1a280124_1)
3D One-Hand Control
The 3D one-hand control provides precise one-hand control of the platform and boom. The easy-to-use control provides consistent and dependable operation.
PAL Compatible
A positive attachment lanyard (PAL) device sounds an alarm when the operator engages the controls without attaching their lanyard harness. The LT40 is PAL compatible. PAL aids in the safe work practices of the operator and utility.
Filament Wound Fiberglass Boom
The filament-wound fiberglass boom provides both strength and insulating properties to the boom. The boom consists of many strands of fiberglass being pulled through an epoxy resin in a rectangular pattern to maximize strength and rigidity.
Chassis Controller Options
Terex offers two chassis controllers which are both used for DC pump control, throttle control, and remote start/stop. The controller options also provide system functionality for the body and boom electrical circuits.
